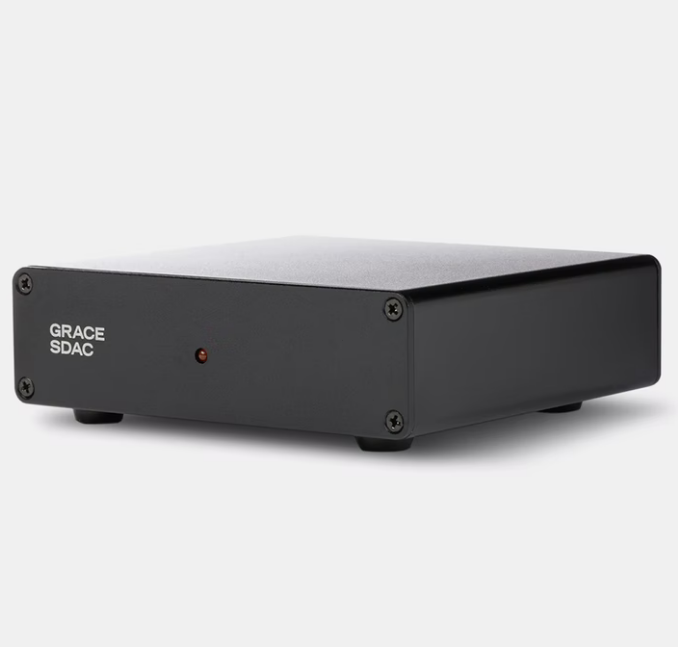

Massdrop X Grace Design Standard DAC Amplifier MDX-15811-1
Description:
- Condition: New
- Features:
- Massdrop x Grace Design
- Chassis material: Anodized aluminum
- DAC chip: AKM AK4452
- Audio formats: Up to 24 bit/96 kHz
- Frequency response, 20Hz–20 kHz: +/-0.02 dB
- THD+N at 20 Hz -0.15 dBFS: 0.0013%
- THD+N at 100 Hz, -0.15 dBFS: 0.0013%
- THD+N at 10 kHz, -0.15 dBFS: 0.0024%
- IMD CCIF, -6.03 dBFS, 19/20kHz, 24/96k: 0.0005%
- IMD SMPTE -6 dBFS, 24/96k: 0.0015%
- Noise, A-weighted: -105 dBu
- Dynamic range, A-weighted: >114 dB
- Linearity, -90 dBFS: -0.07 dB
- Crosstalk at 1 kHz, -10 dBFS (3.5mm jack): -102 dB
- Sum of jitter components at 11,025 Hz, -1 dBFS: -133 dB
- Maximum output: 2.15VRMS
- USB controller: XMOS XU208-128-TQ64

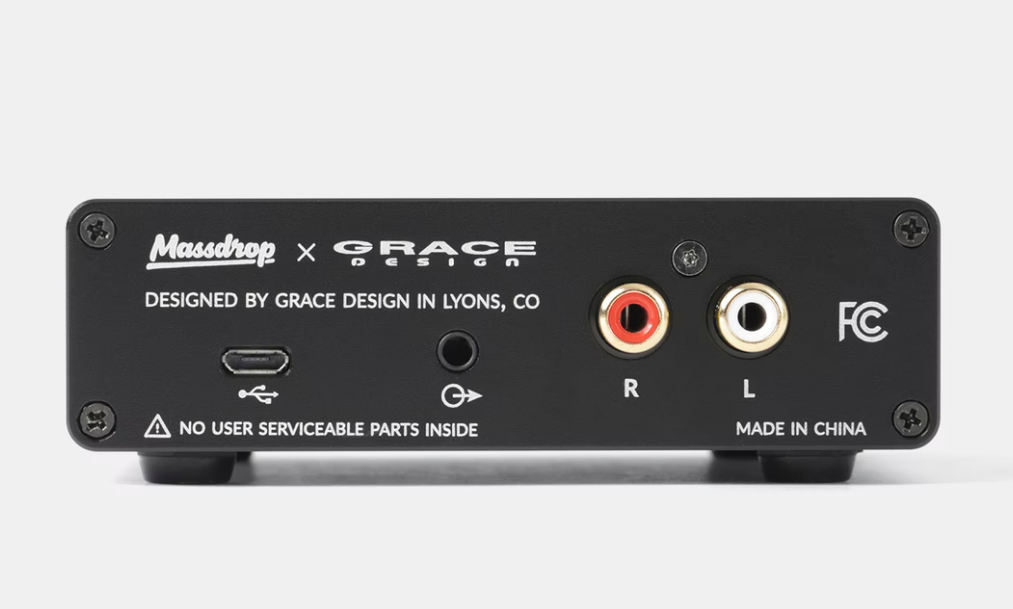

- Inputs: USB micro
- Output: ⅛ in (3.5 mm) TRS, RCA
- Power: USB Class 1 (no drivers required for Windows, Mac, or Linux)
- Dimensions, L x W x H: 3.9 x 4.1 x 1.2 in (100 x 104 x 30 mm)
- Length with RCA port: 4.2 in (105.5 mm)
- Height with rubber feet: 1.4 in (34 mm)
- Weight: 7.44 oz (210.8 g)
Included
- Massdrop X Grace Design Standard DAC
- 3.3 ft (1 m) micro-USB to USB cable
