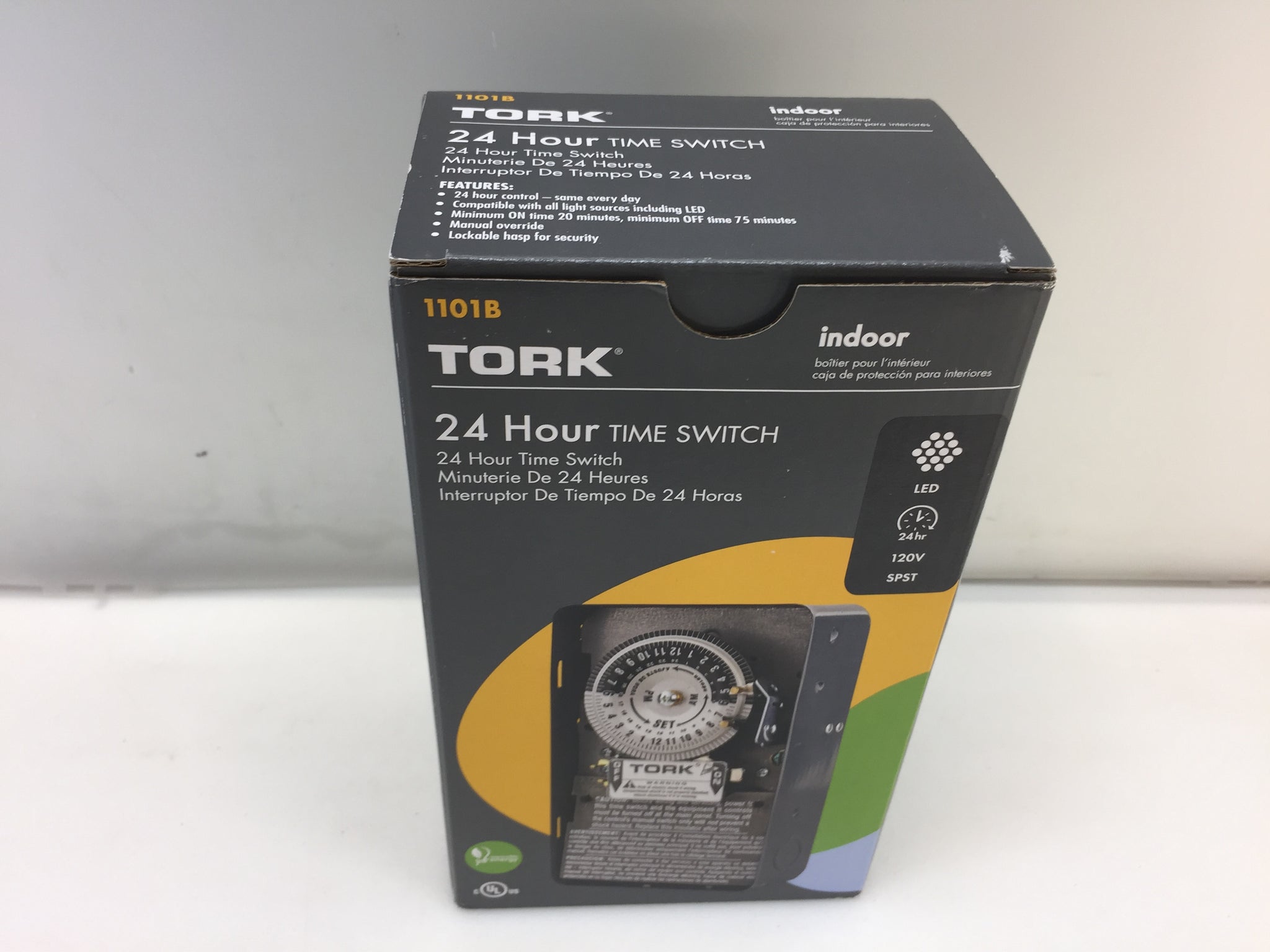

TORK 1101B 40A 1-Channel 24-Hours Indoor Mechanical Time Switch
New In Box Condition.
This 24-hour, SPST Mechanical Time Switch is perfect for lighting, pumps, signs, air conditioning, water heaters and fans applications. The Automatic on/off control when operation is required at the same time every day makes it end user friendly. This basic timer will cover many of your single-phase needs.
- Scheduling is minimum on is setting 20 minutes with a minimum off setting of 75 minutes, dial accommodates up to 12 pairs of trippers P47, it features manual override until the next regularly scheduled on or off automatic operation resumes
- Input-voltage of 120 VAC 60 Hz and output contacts is SPST with timing accuracy of line frequency, terminal range of #8 - #14 AWG
- Lockable hasp, metal indoor NEMA 1 enclosure
- Operating temperature range -40 to 165°F (-40 to +74°C)
- Power consumption of 3-Watt maximum
